manoj@embeddedautomation.org - GST NO. : 29CXZPS7723L1Z4
| Business Type | Exporter, Supplier |
| Type | Industrial Box PC |
| Material | Metal |
| Color | Black |
| Click to view more | |
Product Details

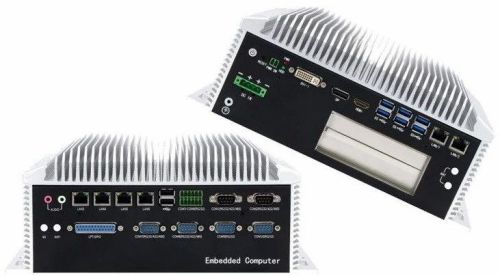

Industrial Box PC with 2 pci slots Products Features:
Industrial-Grade Embedded Fanless Mini PC Intel B85 / B365 Chipset Intel Celeron, Pentium and Core 4/6/7/8/9th-i3 / i5 / i7 / i9 CPU 2*LAN, 8*USB, 6*COM, 1*HDMI, 1*DP, 1*DVI 1*Mini PCIE Expansion Slot, Support 4G and WIFI Module 1*PCIE 16X+1*PCIE 1X or 2*PCI Slots DC 9-36V Power Input With Overvoltage Protection-30℃~70℃ Temperature Can Keep 24/7 Work Stably Anti-Static, Anti-Pulse, Anti-Surge, Anti-Radiation.
i3 / i5 / i7 processor, 9/10/11/12th Generation 2*DDR IIII RAM Slots, Up to 16GB 1*MSATA SSD Slot 1*M.2 NVME SSD Slot 2*SATA SSD Slots 1*HDMI: Resolution up to 4096*2304@24Hz 1*DP: Resolution up to 3840*2160@60Hz 1*DVI: Resolution up to 1920*1200@60Hz 1*Mini PCIE Slot, Support 4G and WIFI module 1*PCIE 16X+1*PCIE 1X or 2*PCI 2*Inteli211VLANChip QY-B6000-6E 4*Inteli211VLANChip 4*RS-232(DB9Type) Audio 2*Intel i211V+4*Intel i210 LAN Chip (Support POE) 4*RS-232(PhoenixTerminalType) RJ-45 Type (10 / 100 / 1000 Mbps) 6*USB 3.0 (Type-A) 2*USB 2.0 (Type-A) 2*RS-232 / 422 / 485 (DB9 Type) 4*RS-232 / 422 / 485 (DB9 Type) 6*RS-232 / 422 / 485 (DB9 Type) 4*RS-232(DB9Type) 1*Line-In+1*Line-Out.
