Industrial-Grade PoE & Ethernet Switches

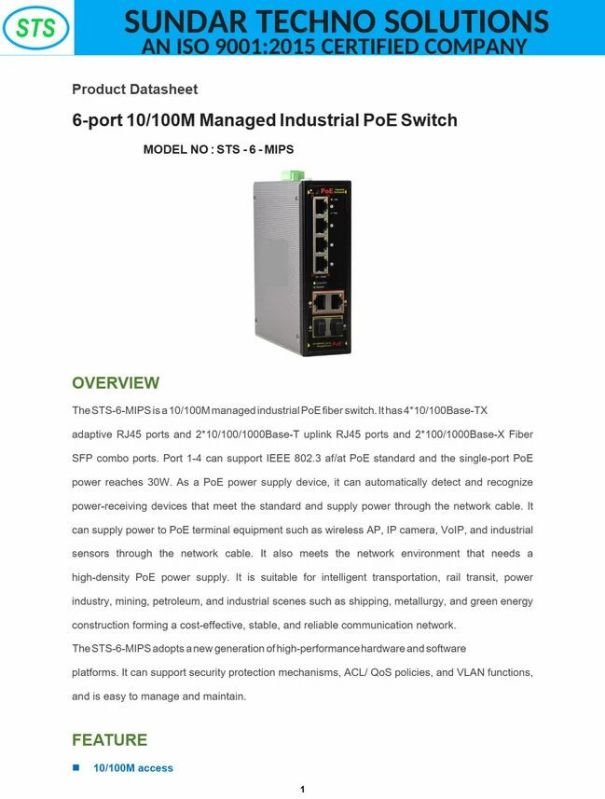

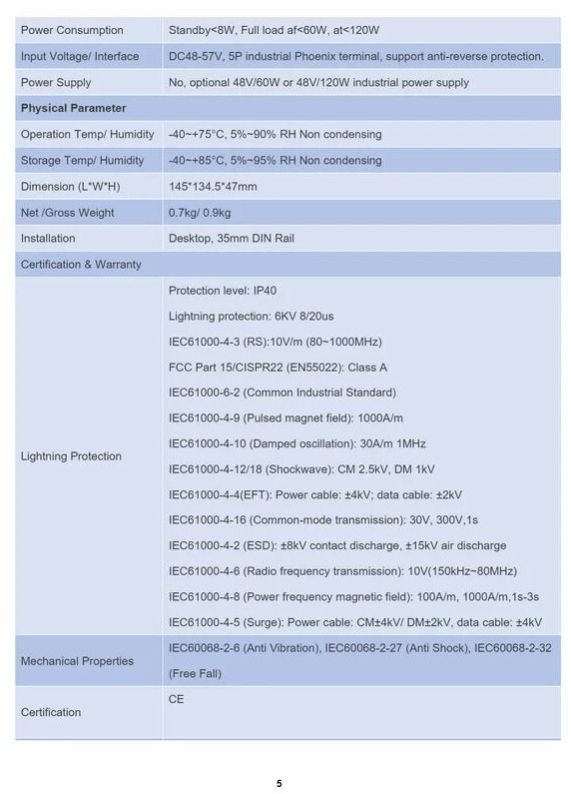

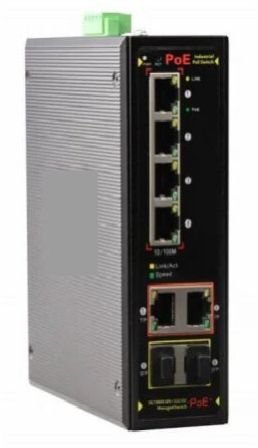

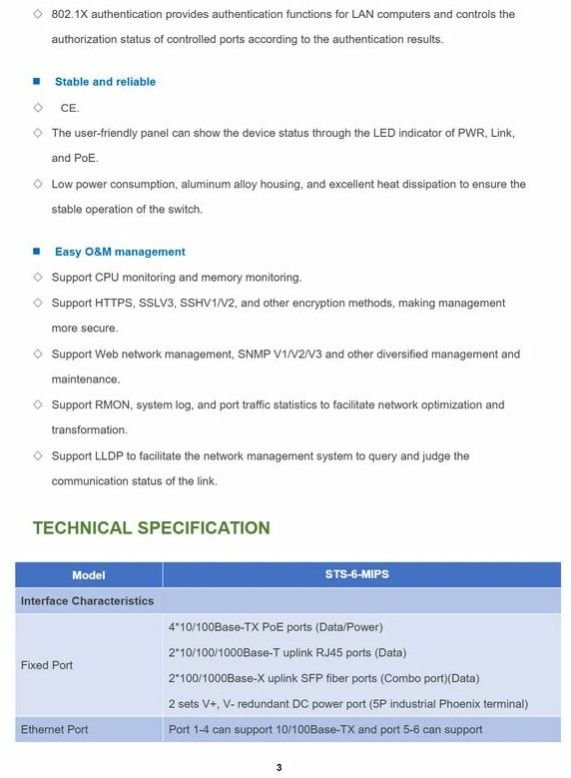

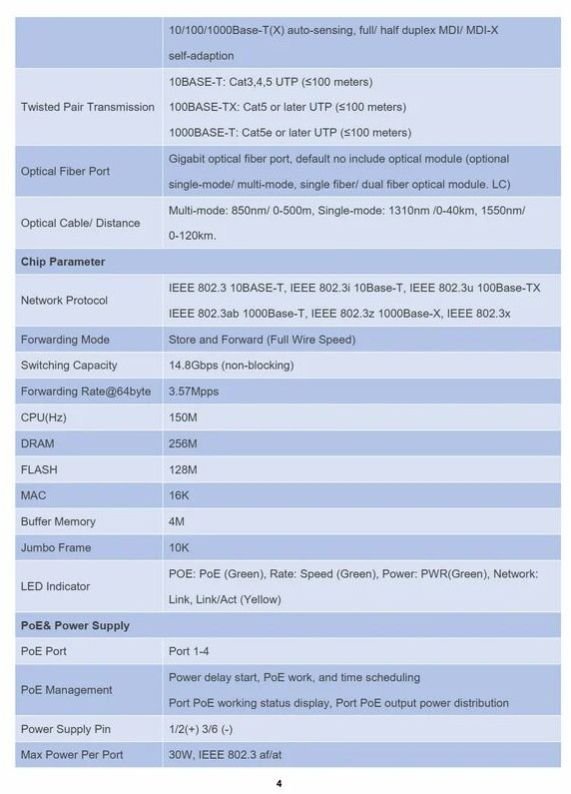

TheSTS-6-MIPSis a10/100MmanagedindustrialPoEfiber switch.Ithas4*10/100Base-TX adaptive RJ45 ports and 2*10/100/1000Base-T uplink RJ45 ports and 2*100/1000Base-X Fiber SFP combo ports. Port 1-4 can support IEEE 802.3 af/at PoE standard and the single-port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and recognize power-receiving devices that meet the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP camera, VoIP, and industrial sensors through the network cable. It also meets the network environment that needs a high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, and industrial scenes such as shipping, metallurgy, and green energy construction forming a cost-effective, stable, and reliable communication network. TheSTS-6-MIPSadopts anew generation ofhigh-performancehardwareand software platforms. It can support security protection mechanisms, ACL/ QoS policies, and VLAN functions, and is easy to manage and maintain.

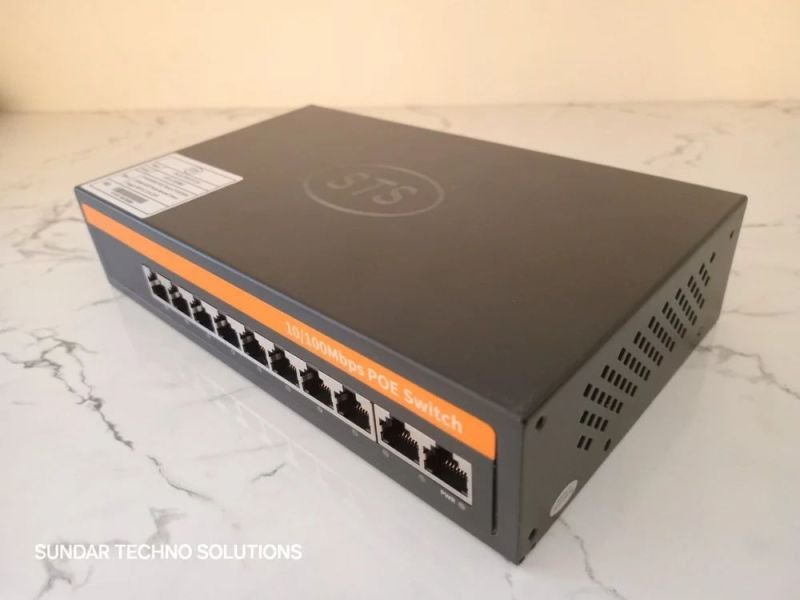

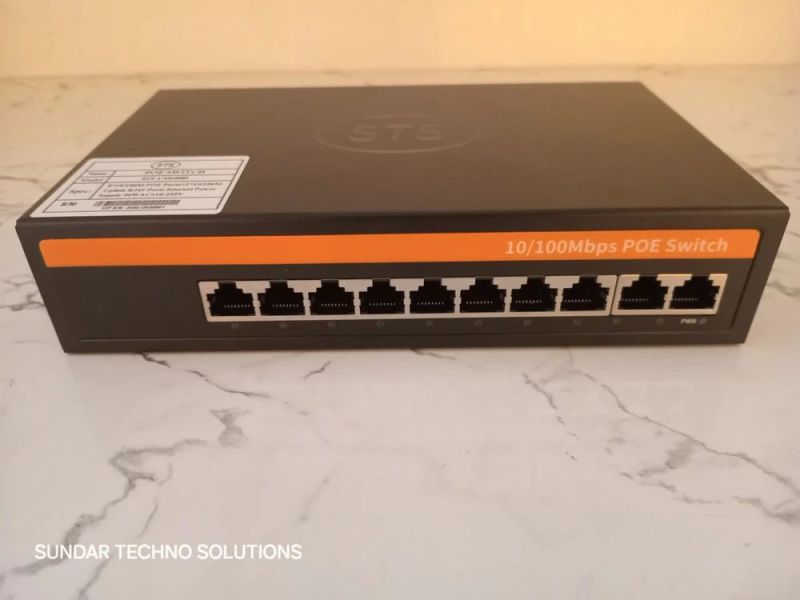

The POE Powered Switch supports the IEEE802.3af/at power over Ethernet standard with a power distance of 100 meters and only powers 802.3af/at terminal devices, so there is no need to worry about compromising proprietary standards for POE or non-POE devices. In addition, the POE device stops supplying power when it is not connected. These devices, which are far from the power outlet, are suitable for hanging on the wall or on the ceiling, and the POE eliminates the need to connect the power outlets for these devices, making the connection to equipment that is difficult to connect to AC power more flexible and with minimal installation costs. This series POE Powered switches are ideal selection for small business networks that want to use the economic deployment of wireless access points (AP) and IP-based network surveillance cameras .

TheSTS-10GUMPSseriesis agigabituplink L2managedindustrialPoEfiber switch.Ithas 8*10/100Base-TX RJ45 ports and 2*100/1000Base-T(X) combo ports , Port 1-8 can support IEEE802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 120W(at-240W). and each port can realize line-speed forwarding. TheSTS-10GUMPSseriesadopts anew generation ofhigh-performancehardwareand software platforms to provide flexible and cost-effective 100Mbps access and uplink ports. It can support security protection mechanisms, ACL/QoS policies, and VLAN functions, and is easy to manage and maintain. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal device such as wireless AP, IP camera,industrial sensor through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, sea transportation. Industrial scenes such as metallurgy and green energy construction form a cost-effective, stable and reliable communication network.

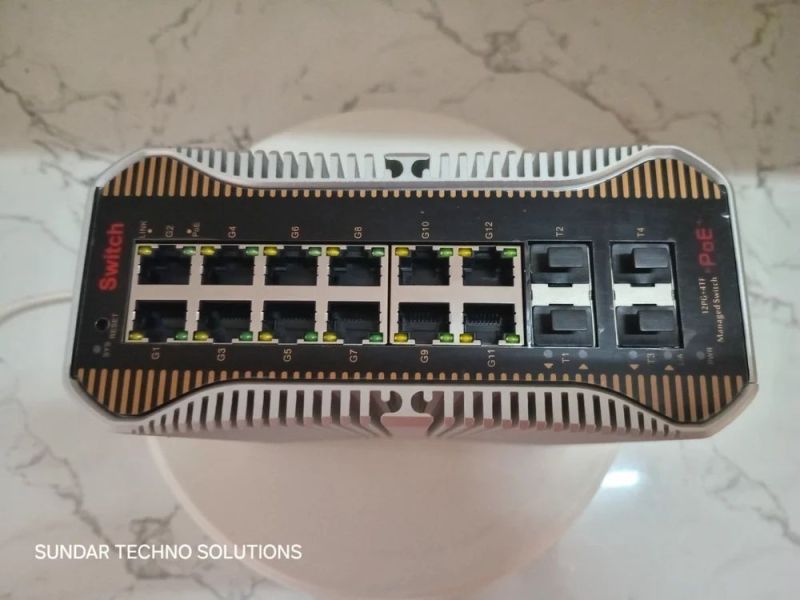

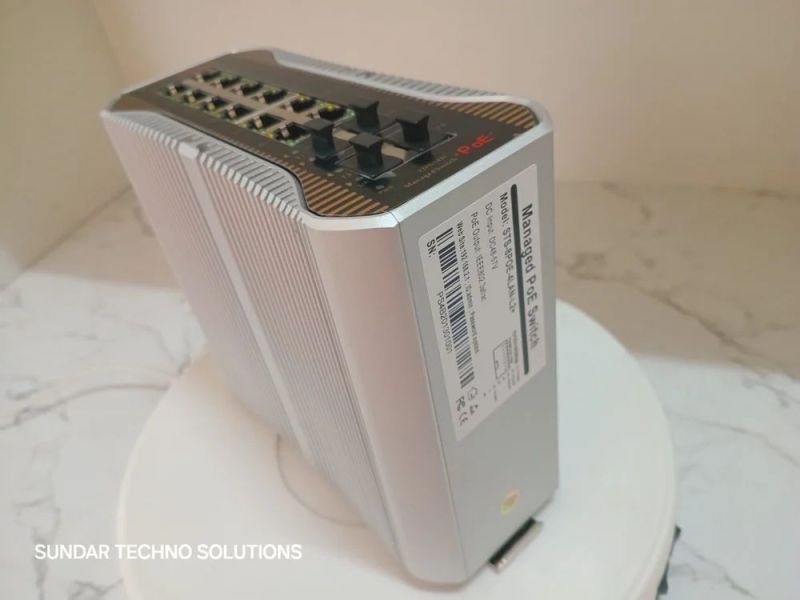

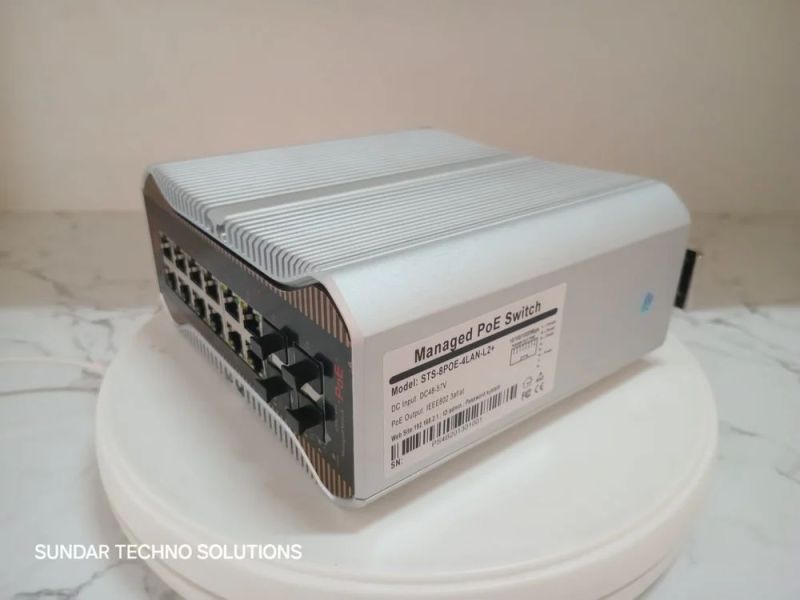

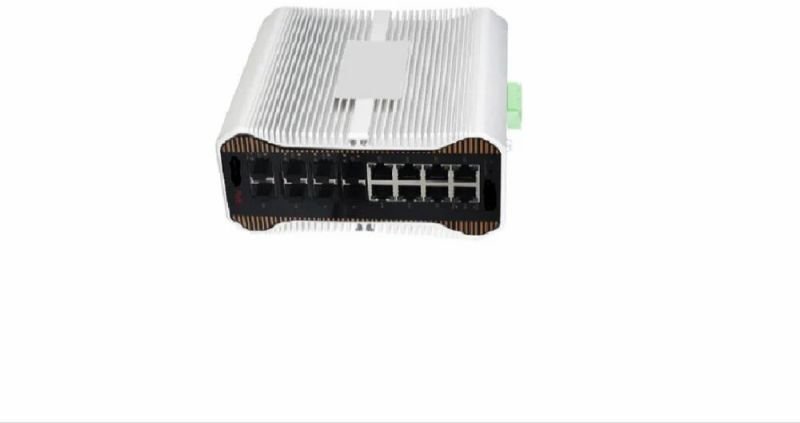

The STS-8POE-4LAN-L2+ is a 10G uplink L2+ managed industrial PoE fiber switch. It has 12*10/100/1000Base-T adaptive RJ45 ports and 4*1/10G uplink SFP+ fiber ports. Port 1-8 can support IEEE 802.3 af/at PoE standard and single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable

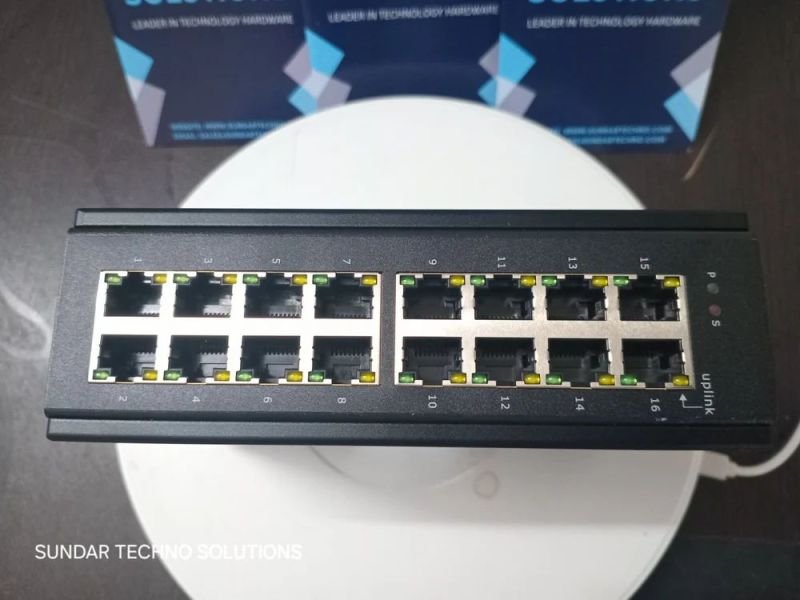

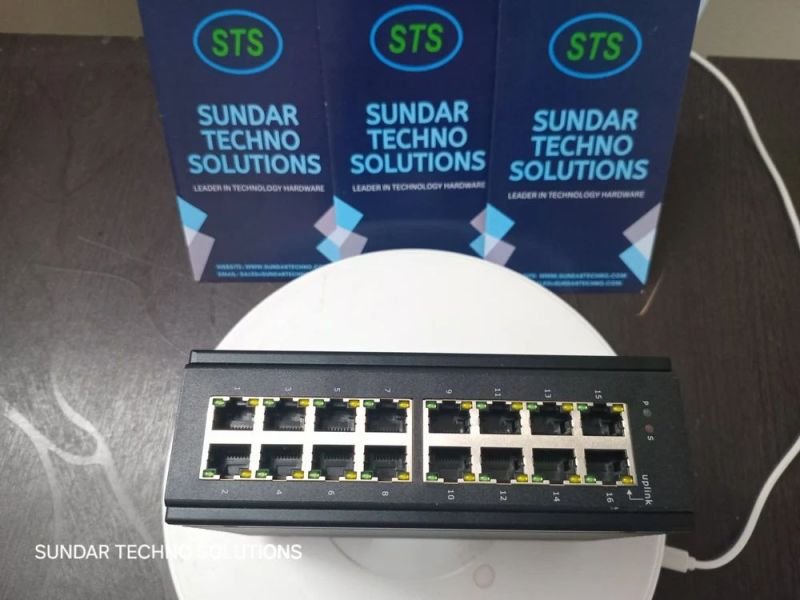

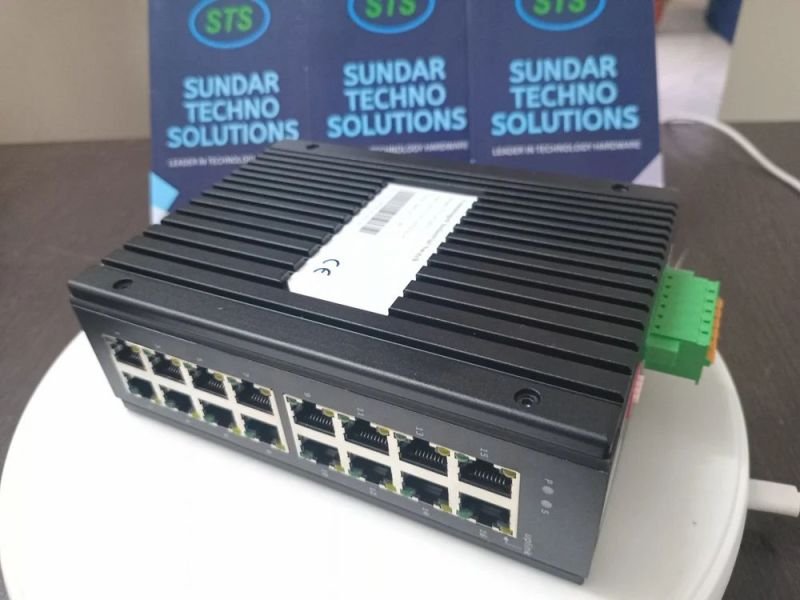

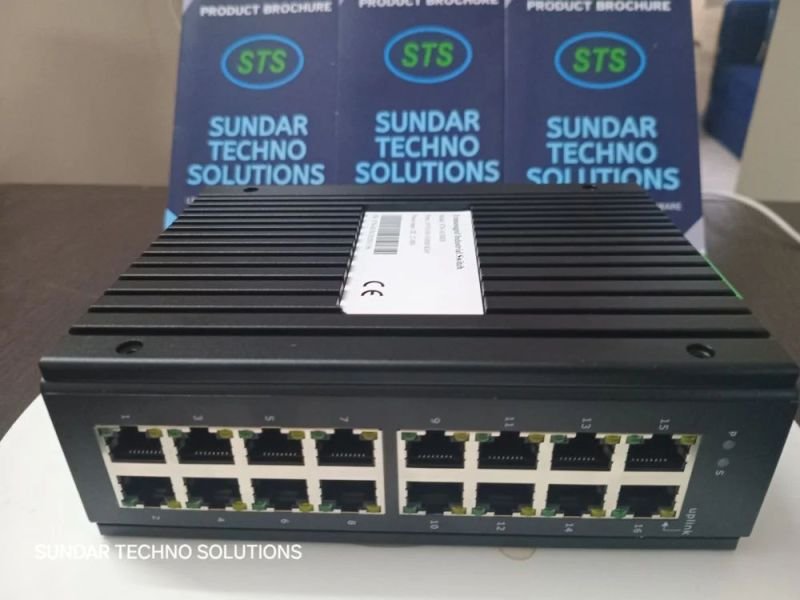

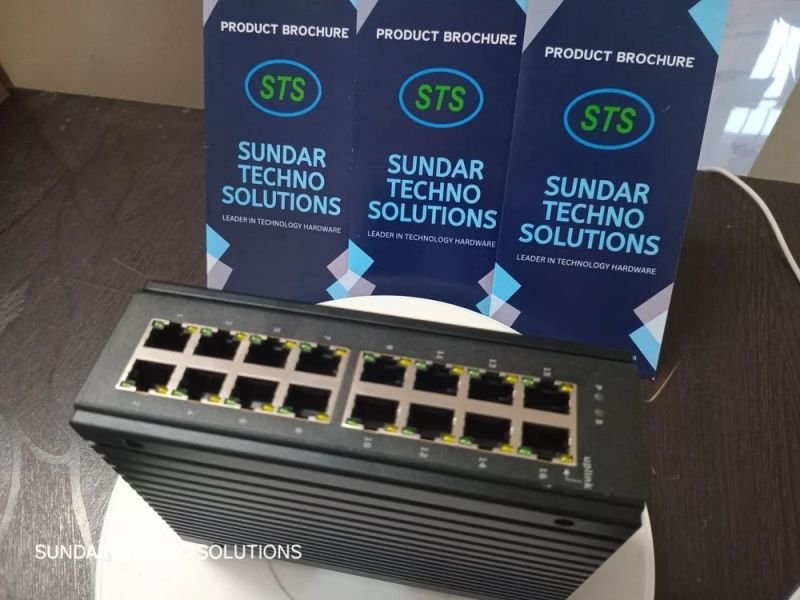

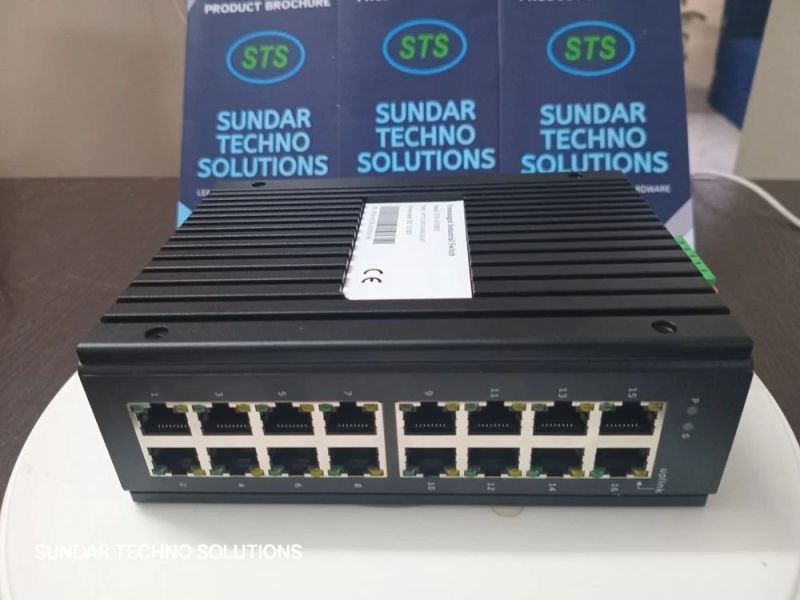

16*10/100/1000Base-TX RJ45 ports Redundant DC12-58V power input with polarity reverse/over-current protection Support one output relay alarm(terminal block Pin 5/6)for DC power failure Powerful DIP switch function(on the top panel) 1. Port isolation; 2. Flow control; 3. QoS; 4. Broadcast storm restrain Support 10K bytes jumbo frame Support 6KV surge protection and ESD: Air-15KV, Contact-8KV protection IP40 fan-less and Din-rail design Operation temperature: -40℃~+75℃ With above features, it is an ideal solution for IP Surveillance, wind, electricity, assembly automation, subway PIS, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries

The POE Powered Switch supports the IEEE802.3af/at power over Ethernet standard with a power distance of 100 meters and only powers 802.3af/at terminal devices, so there is no need to worry about compromising proprietary standards for POE or non-POE devices. In addition, the POE device stops supplying power when it is not connected. These devices, which are far from the power outlet, are suitable for hanging on the wall or on the ceiling, and the POE eliminates the need to connect the power outlets for these devices, making the connection to equipment that is difficult to connect to AC power more flexible and with minimal installation costs. This series POE Powered switches are ideal selection for small business networks that want to use the economic deployment of wireless access points (AP) and IP-based network surveillance cameras .

 8*10/100/1000Base-T RJ45 PoE, 4*1000/2500Base-X SFP slots  Redundant power 44-57V input with polarity reverse/over-current protection  Comply with IEEE802.3af PoE and IEEE802.3at PoE+ standard  DI/DO/RS485 and USB one key configuration & upgrading are optional  Layer 3 features: Support IPv4/IPv6 static routing, DHCP server  Layer 2 features: VLAN/VLAN Classification/QinQ/STP, RSTP, MSTP Port Mirroring/DHCP/Multicast/ACL/IGMP/QoS/LLDP/802.1X/Dying Gasp/SFP DDM IPV6 management/PoE management/Web/SNMP/Telnet/TFTP/Web upgrading  Support G.8032 ERPS protocol, recovery time≤20ms  Support6KVsurgeprotectionandESD:Air-15kV,Contact-8kVProtection  IP40 fan-less and Din-rail hardware design  Operation temperature: -40 ℃ ~+75℃ With above features, it is an ideal solution for IP Surveillance, wind, electricity, assembly automation, subway PIS, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries

STS8M2G-SFP an hardened 10-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 8-port 10/100/1000BASE-TX RJ45 +2G SFP delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.

10/100Base-TX Port	5 port RJ-45 auto-MDI / MDI-X
Performance Specification	Bandwidth: 2Gbps
	Packet Buffer Memory:512K
	Packet Forwarding Rate:148800pps/port
	MAC Address Table: 2K
Installation	DIN rail kit and wall mount ear
Maximum Frame Size	1522bytes packet size
Flow Control	Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

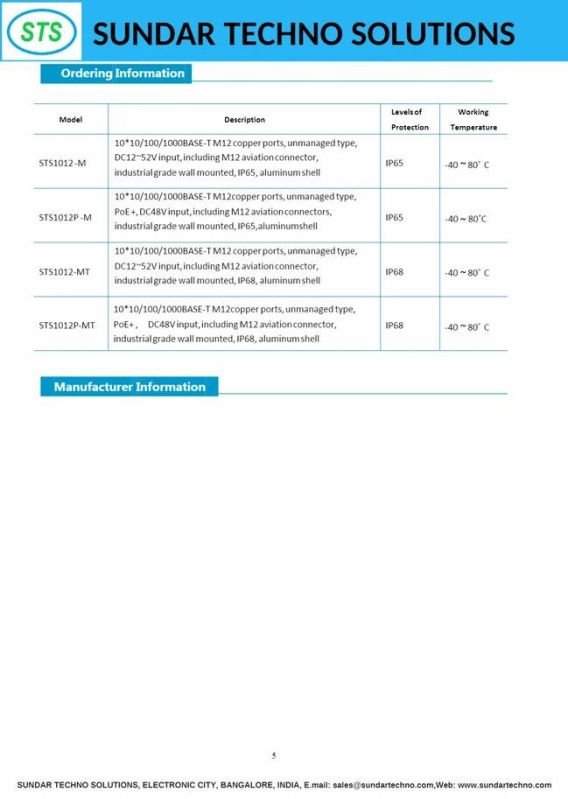

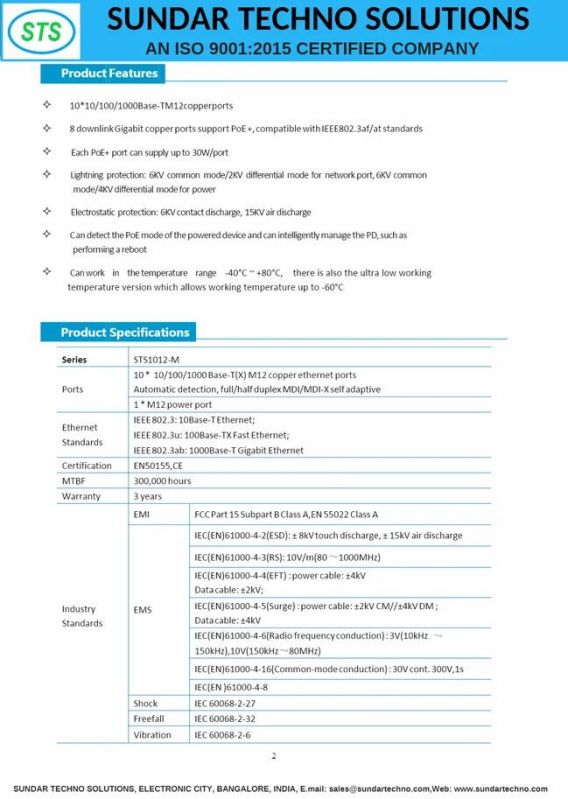

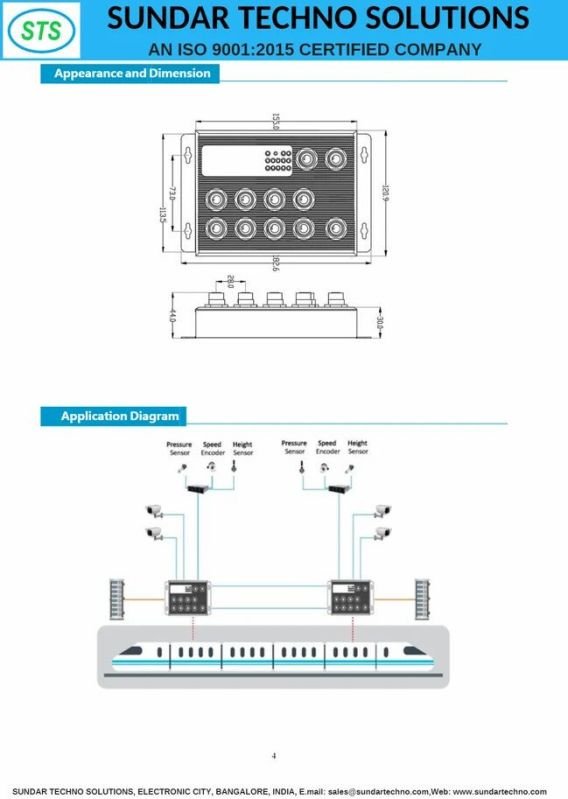

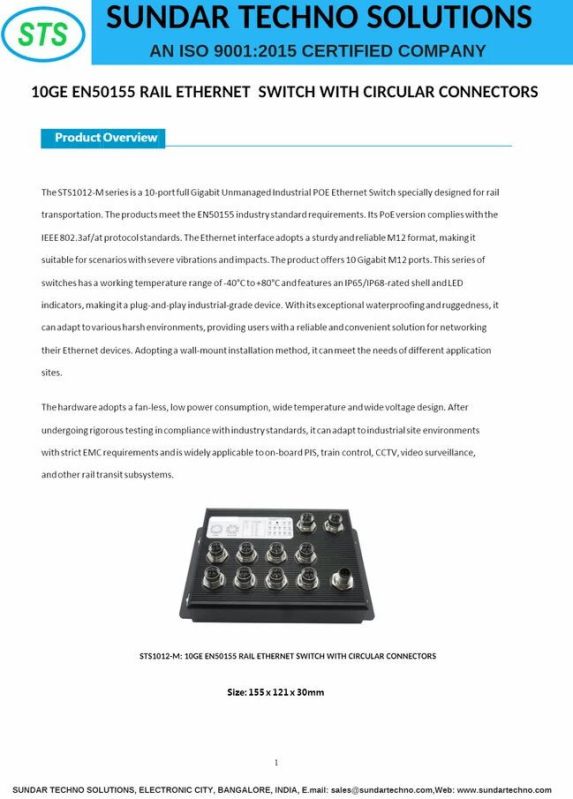

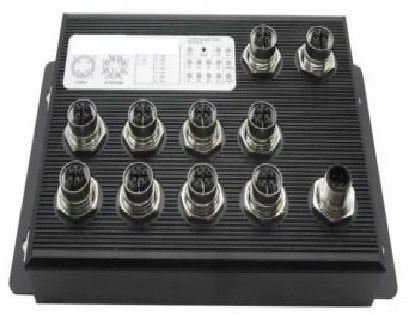

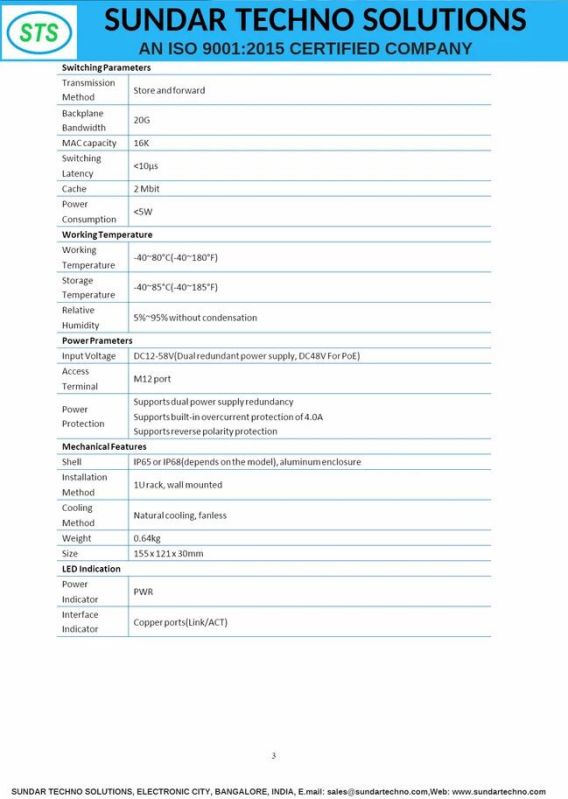

The STS1012-M Series10GE EN50155 Rail Ethernet Switch is a rugged Industrial Ethernet Switch designed for on-board PIS applications. Made of durable metal in black color, it features 10 Gigabit M12 Ports, EN50155 compliance, -40°C to +80°C temperature range, and IP65/IP68 rating. Easy wall-mount installation makes it ideal for harsh environments.
