Industrial & Rugged Panel PCs

High brightness lcd with multiple point resistive touch
Removeable storage casefor easy maintenances
EMC compliant with MIL-STD-1275E

Rugged Industrial PC – Military-Grade Design

This rugged industrial PC is engineered for mission-critical applications and harsh environments, offering modular flexibility, robust military-grade connectors, and high-performance computing in a compact, reliable form factor.

Key Features

• Optional Military-Grade Connectors
  Supports M12 metal connectors, MIL-38999, and MIL-26482 series connectors for maximum durability and secure connections in demanding conditions

• Modular Mechanical Design
  Enables flexible configuration, easy upgrades, and simplified maintenance, ideal for custom deployments

• High-Efficiency Processor
  Powered by Intel® Celeron® J6412, based on the Elkhart Lake platform for low-power, high-efficiency performance

• Advanced Memory Support

  • Supports DDR4 2666/2933/3200MHz

  • Up to 32GB maximum RAM capacity

• Comprehensive I/O Interface

  • 2 × HDMI

  • 3 × USB 3.0

  • 3 × USB 2.0

  • 2 × LAN

  • 1 × Line-out

• Enhanced Security

  • Integrated TPM 2.0 onboard for hardware-level security and encryption

Hashtags

#IndustrialPC #RuggedComputer #RuggedDisplay #MilitaryDisplay #MilitaryPC #MilGradePC

Designed for Demanding Medical Environments

• Premium Display: Equipped with a high-standard LCD screen and a high-precision capacitive touchscreen for clear visuals and accurate touch response.

• Durable Construction: Built with a robust aluminum alloy chassis, offering enhanced durability and reliability.

• Fanless, Fully Enclosed Design: Features a fanless architecture with a fully sealed enclosure, ensuring silent operation and preventing dust ingress—ideal for sterile and sensitive medical environments.

• Optimized for Medical Applications: Engineered to deliver stable, long-term performance even in complex and high-demand healthcare settings.

• Certified Medical Compliance: All units are tested and certified for medical standards, including EMI, ESD, safety regulations, surge protection (pulse group), and emission radiation.

• Custom-Designed Appearance
  Unique independent mold design for a refined and modern industrial look

• High-Precision Build
  Constructed from premium aluminum alloy for durability and reliability

• Pure Flat Panel Design
  Sleek front panel with IP65-rated dust and waterproof protection

• Fanless X86 Architecture
  Equipped with a self-developed, fanless industrial-grade X86 motherboard for stable and silent operation

• Electromagnetic Interference Protection
  Compliant with EMC standards to resist electromagnetic interference

• Industrial-Grade Durability
  Built for harsh environments, offering high resistance to vibration, dust, and temperature fluctuations

• High Software Compatibility
  Compatible with 99% of industrial software for seamless integration

• Rich I/O Interface & Expansion Capability
  Multiple ports and expansion options to meet various application requirements

• Built-In Speaker
  Integrated audio for applications requiring sound output

Passed the ATEX-Ex EU protection certificate Display size：12.1",15",15.6",18.5",19,"21.5" Front panel/back cover：Aluminium-magnesium alloy Front panel/Rear：IP65 / IP65 Screen Type: Multi-point capacitive touchscreen OS：WinXP，Win7，Win10/Win11，WinCE，Linux Equipped with 2xIntel i210AT Gigabit network cards，4xUSB ports Processor：Intel Celeron J6412（don 't support Win XP, Win7）/3855U/ 3865U and Intel sky lake i3/i5/i7 multiple CPU optional Extendable WIFI/4G DC 9~36V

Product Introduction

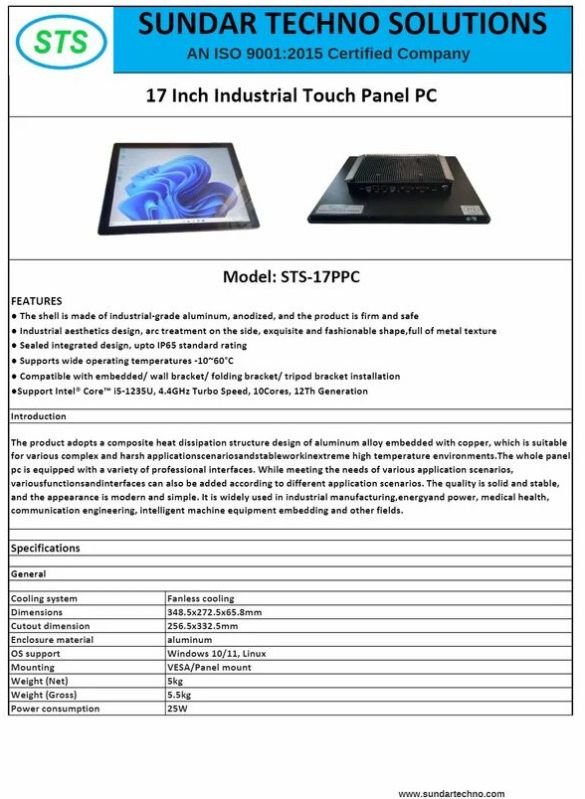

This industrial-grade panel PC features a composite heat dissipation design, combining aluminum alloy with embedded copper to ensure efficient thermal management. Built for demanding and harsh environments, it performs reliably even in extremely high-temperature conditions.

The device is equipped with multiple professional-grade interfaces, making it adaptable to a wide range of applications. Customizable functions and I/O ports are available to meet the specific needs of various industries. With its robust build quality, stable performance, and modern minimalist design, it is suitable for use across diverse fields such as industrial manufacturing, energy and power, medical healthcare, communication engineering, and intelligent equipment integration.

Key Features

• Industrial-Grade Aluminum Alloy Enclosure
  Anodized finish for enhanced durability and safety

• Stylish Industrial Aesthetics
  Smooth arc-edge design with a sleek, modern metallic texture

• Sealed Integrated Design
  Offers high protection with an IP65-rated front panel

• Wide Operating Temperature
  Stable operation in environments from -10°C to 60°C

• Flexible Mounting Options
  Supports embedded, wall-mount, folding bracket, and tripod installations

• High-Performance Processor
  Supports Intel® Core™ i5-1235U, up to 4.4GHz Turbo, 10 cores, 12th Gen, ensuring fast and efficient processing

The ST-19A is a robust industrial touch panel PC featuring a 19" IPS LCD display and low-power embedded computing performance—all housed in a compact, fanless design. Engineered for demanding environments, it includes an IP65-rated front panel, offering superior protection against dust and water.

Users can choose between a capacitive or resistive touchscreen, depending on application needs. The system is built to withstand wide operating temperatures ranging from -10°C to 55°C, ensuring reliable operation in harsh conditions.

To support versatile industrial automation tasks, the ST-19A comes equipped with a full-size mini-PCIe slot, enabling expansion for additional functionality such as Wi-Fi, 4G, or I/O modules.

Certified for ATEX-Ex EU Protection

• Enclosure: Front panel and rear cover made of durable aluminium-magnesium alloy

• Ingress Protection: IP65-rated front and rear panels for superior dust and water resistance

• Display: Multi-point capacitive touchscreen for smooth and accurate touch response

• Operating System Support: Compatible with Windows 7, 8, 10, 11 and Linux

• Connectivity:

  • 2 × Intel® I210AT Gigabit Ethernet ports

  • 4 × USB ports

  • Extendable support for Wi-Fi and 4G modules

• Processor Options:

  • Multiple CPU configurations available, including Intel® Core™ i3/i5/i7 from 6th to 13th generation

• Power Supply: Wide voltage DC input range of 9V to 36V

This industrial-grade panel PC combines high performance with elegant design, featuring an aluminum profile frame that offers both durability and a sleek appearance. Designed for demanding applications, it delivers exceptional display quality and reliable computing power for 24/7 operation.

• Elegant Aluminum Frame
  Sleek, durable aluminum profile design for modern industrial environments

• 23.8" Full HD Industrial LCD Panel

  • Resolution: 1920 × 1080 @ 60Hz

  • Brightness: Up to 350 cd/m²

  • Color Depth: 16.7 million colors for vivid, true-to-life image quality

  • High Contrast & Clarity: Delivers sharp, high-definition visuals

  • Fast Response Time: TR = 1.5 ms, TF = 3.5 ms – ensures smooth, blur-free motion

• Powerful Performance

  • Processor: Integrated Intel® Core™ i5 Alder Lake 5200U

  • Memory: 16GB DDR3 RAM

  • Storage: Dual 1TB SSDs in RAID 1 for high-speed, redundant data protection

• Reliable for Continuous Operation

  • Rated for 50,000 hours of display life

  • Engineered for 24/7 continuous operation throughout the year

• User-Friendly Interface

  • Multi-level OSD menu for easy configuration and control

• Flexible Mounting Options

  • Supports standard VESA wall mount and desktop installation

• Comprehensive I/O Ports

  • Multiple input/output interfaces to meet diverse industrial application needs

Introduction

This industrial-grade panel PC features an advanced composite heat dissipation structure, combining aluminum alloy with embedded copper for efficient thermal management. Engineered for complex and harsh environments, it delivers stable performance even in extreme high-temperature conditions.

Equipped with a range of professional-grade interfaces, the system is highly adaptable and supports customizable functions and I/O configurations to suit diverse application needs. With its solid build quality, reliable performance, and modern, minimalist design, it is ideal for deployment across multiple industries, including:

• Industrial Manufacturing

• Energy and Power

• Medical and Healthcare

• Communication Engineering

• Embedded Intelligent Equipment

Key Features

• Industrial-Grade Aluminum Alloy Enclosure
  Constructed with anodized aluminum for enhanced durability and safety

• Modern Industrial Aesthetic
  Sleek arc-edged design with a refined metallic finish for a premium look

• Sealed Integrated Construction
  Offers front panel protection up to IP65 rating for dust and water resistance

• Wide Operating Temperature Range
  Operates reliably in -10°C to 60°C environments

• Flexible Installation Options
  Compatible with embedded, wall-mount, folding bracket, and tripod setups

• High-Performance Processor Support
  Supports Intel® Core™ i3 processors, with optional upgrades available

• 10.4" Industrial-Grade IPS LCD
  High-quality display with a 50,000-hour LED backlight lifespan for long-term durability

• Flexible Operating System Options
  Available with Windows or Android OS to suit different application needs

• Touchscreen Options
  Supports both capacitive and resistive touchscreens for versatile user interaction

• Wide Operating Temperature Range
  Designed to operate reliably in -10°C to 55°C environments

• Front Panel Protection
  IP65-rated front panel for resistance against dust and water ingress

• Multiple Processor Options
  Powered by a range of processors including:

  • Intel® Pentium 3558U

  • Intel® Celeron J6412

  • Intel® Core™ i3/i5 (3rd, 4th, 8th Gen)

  • Intel® Core™ i7 (8th Gen)
