Rugged & Industrial Display Solutions
Leading Exporters and Wholesaler of 17 Inch Rack Mount Metal Case Non-Touch Monitor, 23.8 Inches STS Military Grade Display, Black and Gray VGA LCD Monitor, LCD STS 43 Inch Industrial Monitor, STS 15 Inch DVI-D Interface Industrial Display, STS 17 Inch High Brightness Industrial Capacitive Touch Monitor, STS 18.5 Inch Capacitive Touch Monitor, STS 19 Inch Wide Screen Monitor, STS 23.8 Inch Industrial Non Touch Monitor, STS 27 Inch FHD Embedded Industrial Touchscreen Monitor and STS Aluminium 10.4 Inch Industrial Touch Screen Monitors With IP65 Protection from Bangalore.
| Business Type | Exporter, Supplier |
| Country of Origin | Made In India |
| Brightness | 250 NITS |
| Brand Name | STS |
| Operating Temperature | 0~50 DegreeC |
| Model Name/Number | ST17M-NT |
| Storage Temperature | 20~60 DegreeC |
| Power | DC 12V |
| Weight | 3.83 KG |
size:17 'metal non metal,Area:344*271 mm, Panel Type:TFT-LCD.Backlight: led, Backlight Life:50,000 hrs, Resolution:1280*1024,Acpect Ratio:5.4,Contrast:1000:1,Brightness:250 NITS, Viewing Angle (H/V):170/160, Response Time:12ms,Display Color:262K, Operating Temperature:0~50°C,Storage Temperature:20~60°C,Video Inputs/Outputs:VGA+AV+BNC+HDMI+USB+RLV+DC,Audio Inputs/Outputs:N/A,Touch:Optional, Installation: VESA mount, Power Requirement: DC 12V, Contro:OSD Control,Product Size:395*300*45 mm, Net Weight,:3.83 KGS,Certificate:CE/FCC/ROHS/CCC
| Business Type | Exporter, Supplier |
| Refresh Rate | 60Hz |
| Size | 24 Inches |
| Resolution | 1920x1080 Pixels |
| Model Name/Number | 23.8-STSDISPLAY |
| Glass Surface | Black Anti-Glare, Low Reflection Coating |
| Light Source | LED Backlight, Long Life, 35,000 Hrs (typ) |
| Signal | Analog RGB (0.7/1.0 V, 75 Ohms) |
■ Modularize mechanical design provides flexible productconfiguration and easy maintenance■ Optional build-in touch screen for interactive application■ Available with auto-brightness sensor offers application inday and night■ VGA connector with optional AV,SV,AV-Looping■ Complete custom design/solution for OEM customers■ Optional: MIL connector / M12 connector / Plastic IP69 water resistant connector
| Business Type | Exporter, Supplier |
| Type | LCD Monitor |
| Color | Black And Gray |
| Screen Size | 12.1 INCH |
| Voltage | INPUT VOLTAGE 12-24V |
| Screen Resolution | 1280*800 |
| Display Colors | 16.7M |
| Business Type | Exporter, Supplier |
| Type | LCD Monitor |
| Color | Black |
| Material | Plastic |
| Model Name/Number | STS-43IM |
| IP Rating | IP65 |
| Display Type | TFT LCD With LED Backlight |
| Brand Name | STS |
| Brightness | 350cd/m2 |
| Power | 0.5W |
| Viewing Angle | 178/178 |
| True Resolution | 1920x1080 |
| Smart Contrast Ratio | 3000:1 |
| Weight | 43KG |
| Interface Type | DVI, VGA,HDMI,USB |
| USB Port | 1*USB Touch |
| Dimensions | 988*577*67.6mm |
| Display Colors | 16.7M |
| Panel Size | 43 INCH |
| I Deal In | New Only |
| W X H X D Monitor | 988*577*67.6mm |
| Product Code | STS-43IM |
| Country of Origin | Made In India |
Main features: 1.Industrial grade 43" TFT LCD with 50K Lifetime LED Backlight 2.IP65 certified front panel protection 3.Support VGA, DVI, HDMI display 4.Support 350cd/m2 brightness 5.VESA mount 300x300 6. Support 2K/4K resolution
| Business Type | Exporter, Supplier |
| Screen Size | 15 Inches |
| Refresh Rate | 60Hz |
| Resolution | 1920 X 1080 Pixels |
| Type Of Monitor | LCD |

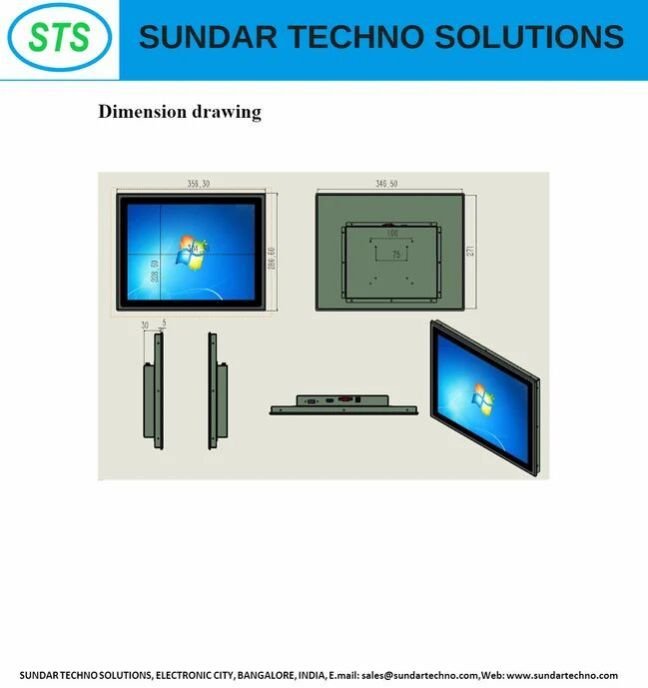

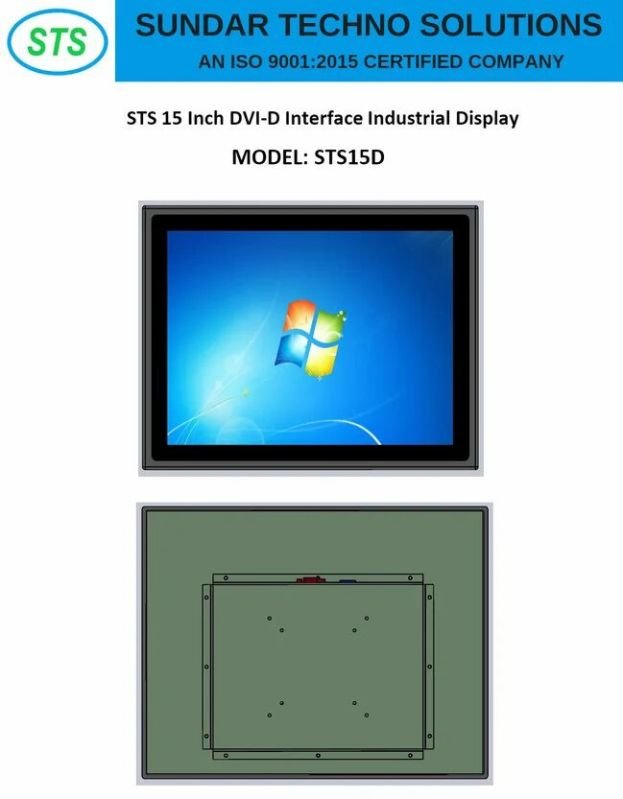

| Model Name/Number | STS15D |
| IP Rating | IP65 |
| Brand Name | STS |
| Brightness | 300nit |
| Weight | 7Kg |
| Dimensions | 281*356*30mm |
| Aspect Ratio | 4:3 |
| I Deal In | New Only |
| Country of Origin | Made In India |

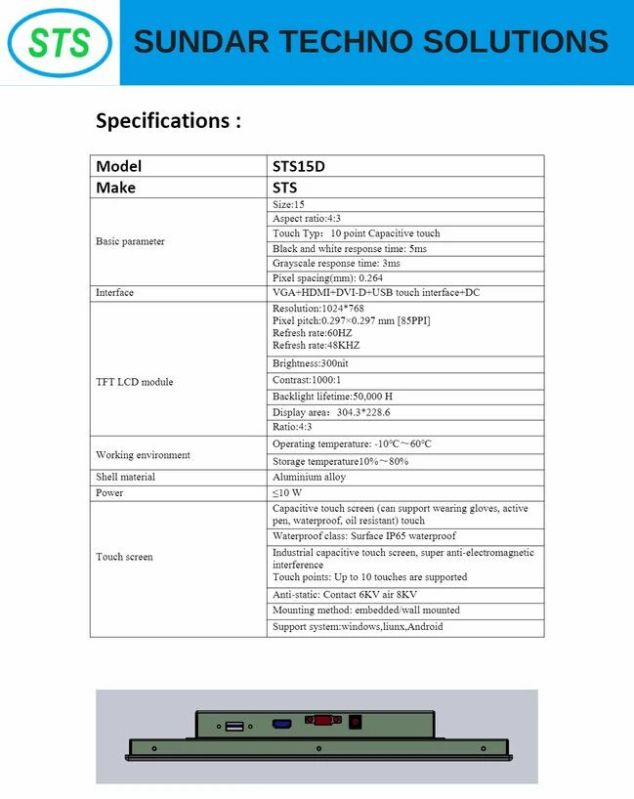

Model STS15D Make STS Basic parameter Size:15 Aspect ratio:4:3 Touch Typ：10 point Capacitive touch Black and white response time: 5ms Grayscale response time: 3ms Pixel spacing(mm): 0.264 Interface VGA+HDMI+DVI-D+USB touch interface+DC TFT LCD module Resolution:1024*768 Pixel pitch:0.297×0.297 mm [85PPI] Refresh rate:60HZ Refresh rate:48KHZ Brightness:300nit Contrast:1000:1 Backlight lifetime:50,000 H Display area：304.3*228.6 Ratio:4:3
| Business Type | Exporter, Supplier |
| Brand Name | STS |
| Contrast Ratio | 1000.1 |
| Model Name/Number | STS17TM |
| Brightness | 1000 Cd/m2 |
| Color | Black |
| Power | DC12V DC9-36V Optional |
| Power Consumption | <60 W Typ |
| Weight | 1KG Around Per Carton |
| I Deal In | New Only |
| Country of Origin | Made In India |
Name 17 inch Monitor, Model STS17TM ,Backlight LED Backlight ,Display Type 4:3, Brightness 1000 cd/m2, Native Resolution 1280 x1024 ,Contrast Ratio Typically 1000:1, Viewing Angle(L/R/U/D) 85° /85° /80° /80°, Interface VGA HDMI,USB for touch ,Input Video Format Analog RGB, CVBS NTSC/PAL (AUTO), Colors 16.7 million ,Backlight Lamp life Hrs 50,000, Sychronization Range 30-80 KHz horizontal, 55-75 Hz Vertical ,Touch type 10 points projective capacitive touch ,Touch screen Interface USB,
| Business Type | Exporter, Supplier |
| Brand Name | STS |
| Resolution | 1920 X 1080 |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 85 Degree /85 Degree /80 Degree /80 Degree |
| Model Name/Number | STS185TM |
| Brightness | 250 Cd/m2 |
| Color | 16.7 Million |
| Lcd Interface | USB |
| Power | DC24V 9-36V Optional |
| Power Consumption | <60 W Type |
| Weight | 12KG |
| I Deal In | New Only |
| Country of Origin | Made In India |
STS 18.5 inch LCD MonitorSpecificaiton:
Model: STS185TM
Backlight: LED BacklightDisplay Type:16:9Brightness: 250 cd/m2Native Resolution: 1920 x 1080Contrast Ratio Typically: 1000:1Viewing Angle(L/R/U/D): 85° /85° /80° /80°Input Video Format: Analog RGB, CVBS NTSC/PAL (AUTO)Colors: 16.7 millionBacklight Lamp life Hrs: 50,000Sychronization Range: 30-80 KHz horizontal, 55-75 Hz VerticalTouch type : 10 points projective capacitive touch

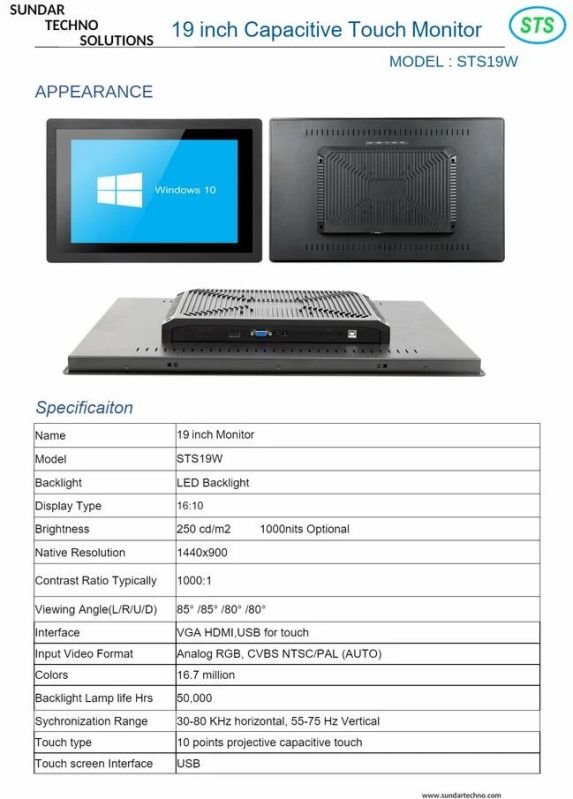

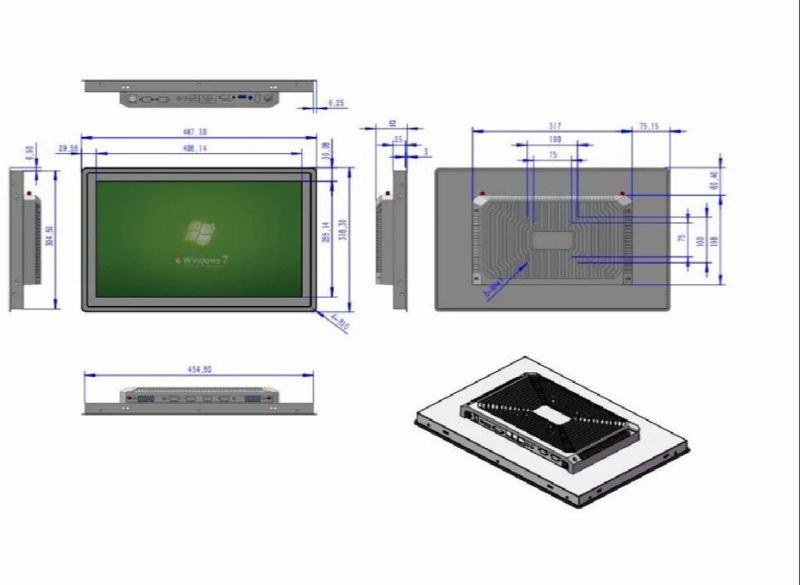

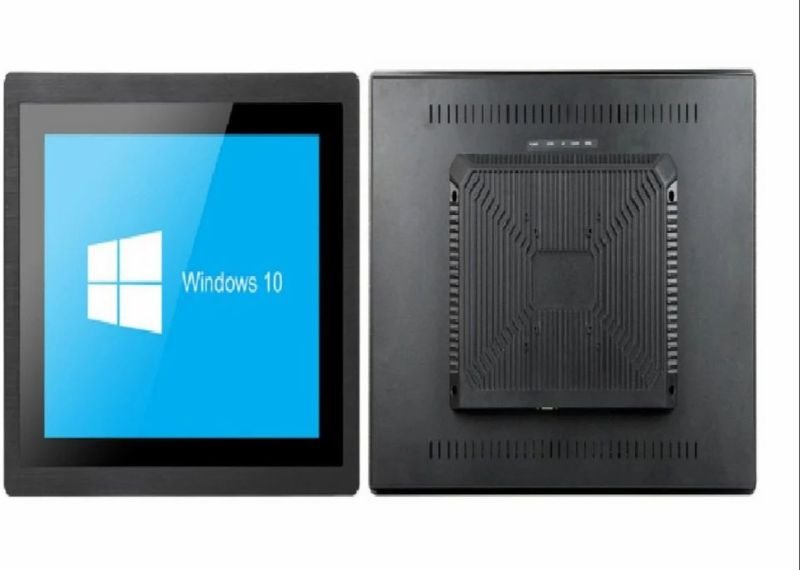

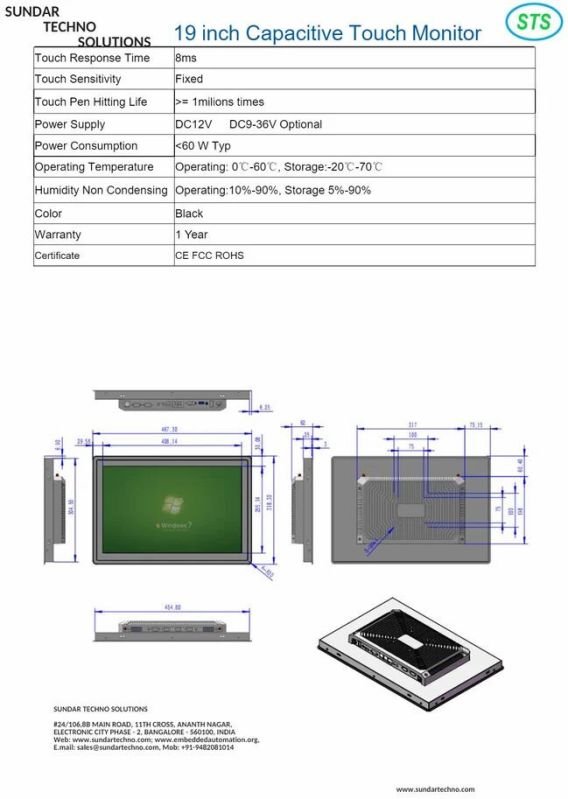

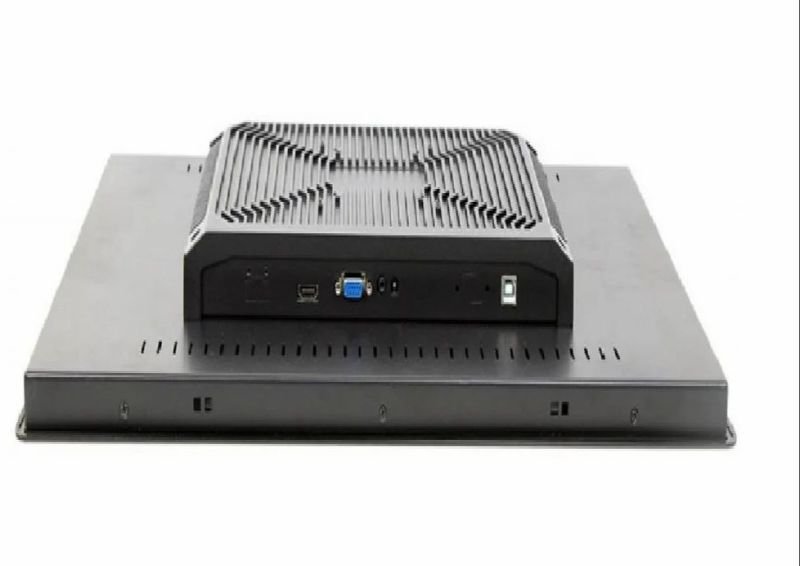

| Business Type | Exporter, Supplier |
| Screen Size | 19 Inch |
| Brand Name | STS |
| Resolution | 1440x900 |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 85 Degree /85 Degree /80 Degree /80 Degree |
| Brightness | 250 Cd/m2 1000nits Optional |
| Power | DC9-36V |
| Power Consumption | <60 W Typ |
| I Deal In | New Only |
| Country of Origin | Made In India |
| Product Code | STS19W |
| Business Type | Exporter, Supplier |
| Country of Origin | Made In India |
| Brand Name | STS |
| Resolution | 1920*1080 |
| Contrast Ratio | 800 / 1 |
| IP Rating | IP65 |
| Model Name/Number | STS-TM238 |
| Brightness | 350 Nits |
| Protection Level | IP65 Water And Dust Proof |
| Light Transmission | More Than 95% |
| Power | DC 12V |
| Weight | 9.5Kg |
| I Deal In | New Only |

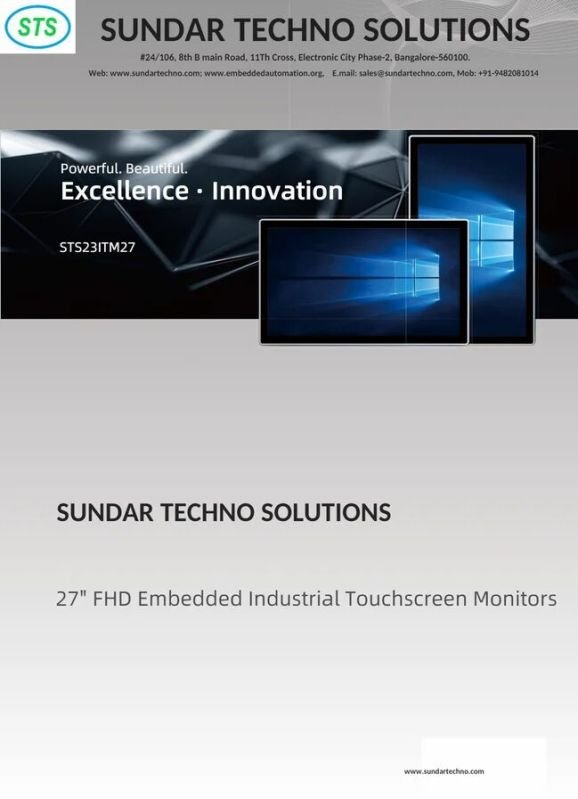

| Business Type | Exporter, Supplier |
| Country of Origin | Made In India |
| Brand Name | STS |
| Screen Size | 27 Inch |
| Resolution | 1920x1080 |
| Contrast Ratio | 3000:1 |
| Operating Temperature | 0 ~50 DegreeC |

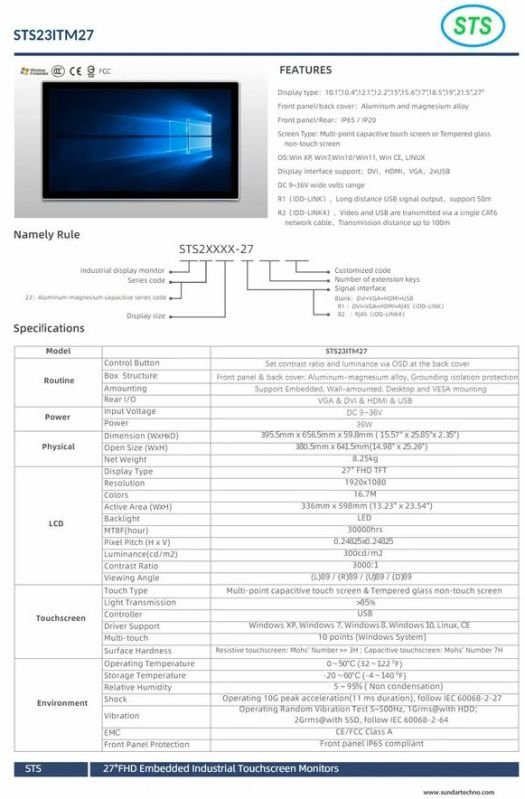

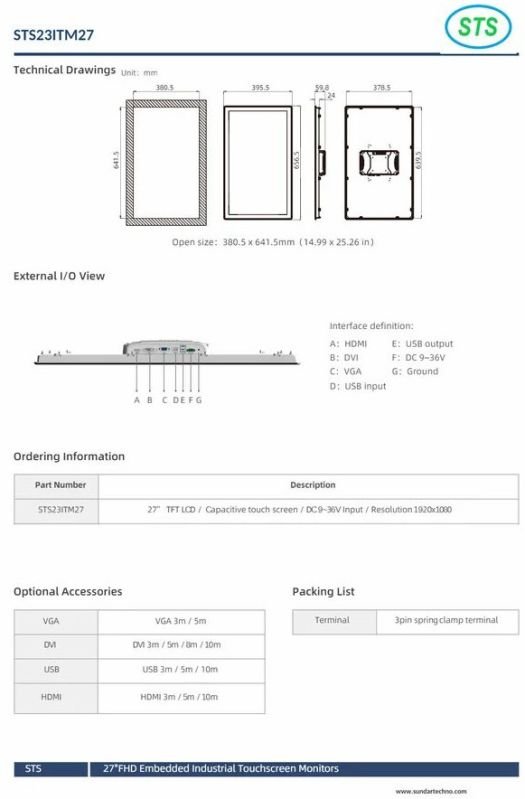

| Model Name/Number | STS23ITM27 |
| Operating System | Win XP, Win7,Win10/Win11, Win CE, LINUX |
| Storage Temperature | -20 ~60 DegreeC |
| Power | 36W |
| Weight | 8.25KG |
| I Deal In | New Only |
Display type：10.1",10.4",12.1",12.2",15",15.6",17",18.5",19",21.5",27" ·Front panel/back cover：Aluminum and magnesium alloy ·Front panel/Rear：IP65 / IP20 ·Screen Type: Multi-point capacitive touch screen or Tempered glass non-touch screen ·OS:Win XP, Win7,Win10/Win11, Win CE, LINUX ·Display interface support：DVI，HDMI，VGA，2xUSB ·DC 9~36V wide volts range ·R1（IDD-LINK），Long distance USB signal output，support 50m ·R2（IDD-LINK4），Video and USB are transmitted via a single CAT6 network cable，Transmission distance up to 100m
| Business Type | Exporter, Supplier |
| Resolution | 1024*768 |
| Screen Size | 10.4 Inch |
| Monitor Size | 10.4 INCH |
| Material | Aluminium |
| Brand Name | STS |
| Brightness | 400cd/m2 (high Brightness Customizable) |
| Color | Black And Gray Available |
This 10.4" industrial touch screen monitor built with an ultra-thin 3mm front bezel, perfect for the embedded mount in the industrial automation application, and its IP65 dust/water-proof protection, wide temperature operation, anti-shock, and anti-electromagnetic interference offering a reliable guarantee for heavy-duty applications
