manoj@embeddedautomation.org - GST NO. : 29CXZPS7723L1Z4
45,000.00 / Piece
| Business Type | Exporter, Supplier |
| Brand Name | Intel |
| Chipset | Intel |
| Application | Industrial |
| Click to view more | |
Product Details
Model Name/Number
ST-RPLPT-6C2L
Graphics Card Type
Integrated
USB Ports
4
Maximum Ram Capacity
Max64GB
Number Of HDMI Ports
1
No.Of Memory Slot
2*SO-DIMM DDR4 3200MHz
USB Type
2*USB3.2 Gen2 10Gbps Optional1*type-C) 2*USB3.2 Gen1 5Gbps ; 7*USB2.0
Country of Origin
Made In India

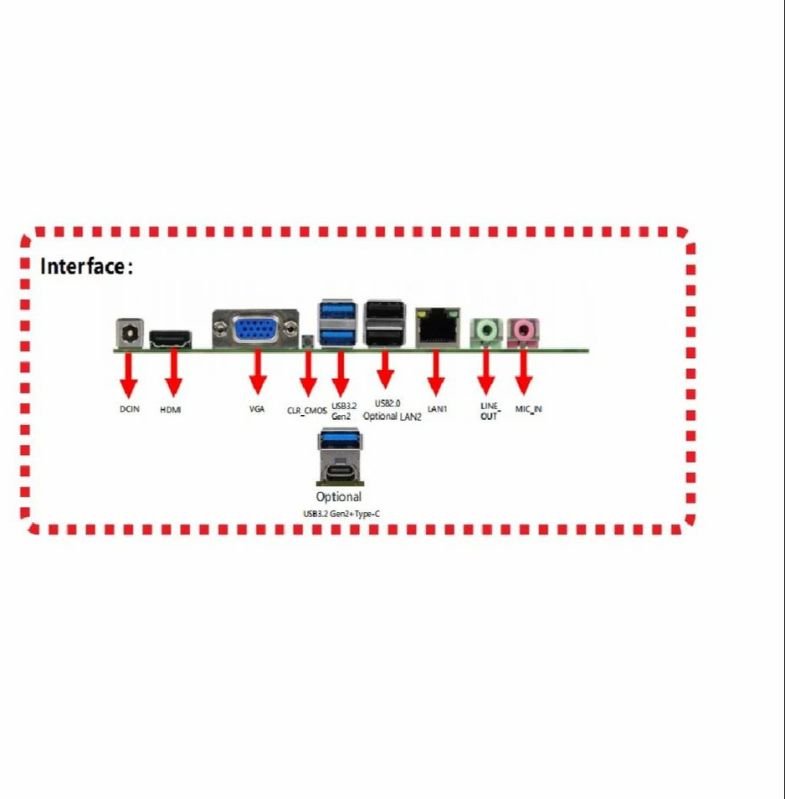

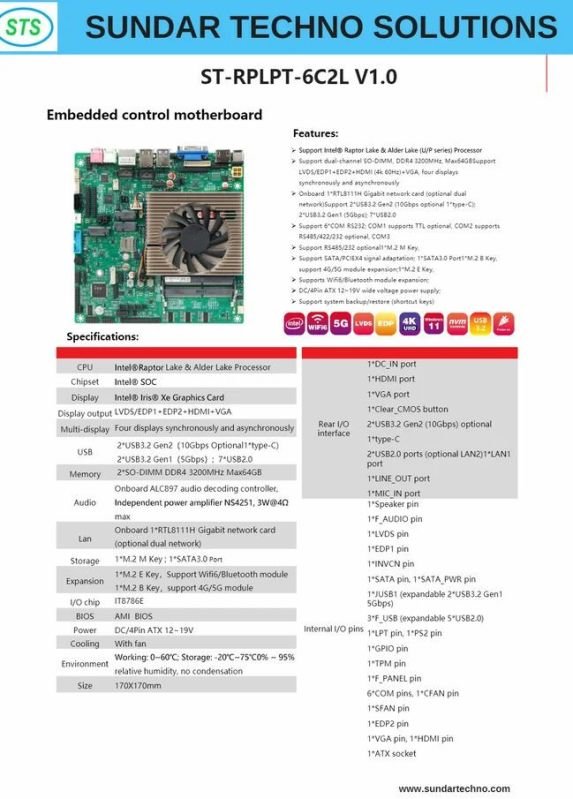

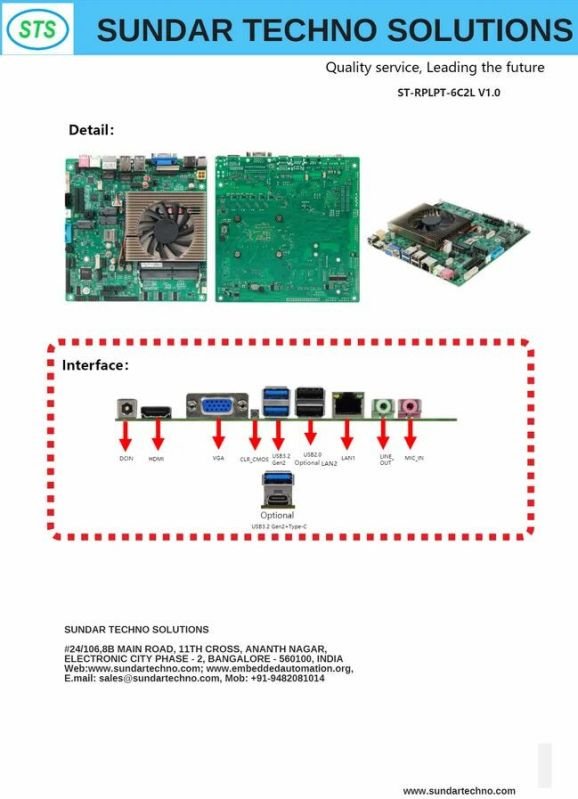

Support dual-channel SO-DIMM, DDR4 3200MHz, Max64GBSupport LVDS/EDP1+EDP2+HDMI (4k 60Hz)+VGA, four displays synchronously and asynchronously Onboard 1*RTL8111H Gigabit network card (optional dual network)Support 2*USB3.2 Gen2 (10Gbps optional 1*type-C); 2*USB3.2 Gen1 (5Gbps); 7*USB2.0 Support 6*COM RS232; COM1 supports TTL optional, COM2 supports RS485/422/232 optional, COM3 Support RS485/232 optional1*M.2 M Key, Support SATA/PCIEX4 signal adaptation; 1*SATA3.0 Port1*M.2 B Key, support 4G/5G module expansion;1*M.2 E Key, Supports Wifi6/Bluetooth module expansion; DC/4Pin ATX 12~19V wide voltage power supply; Support system backup/restore (shortcut keys)

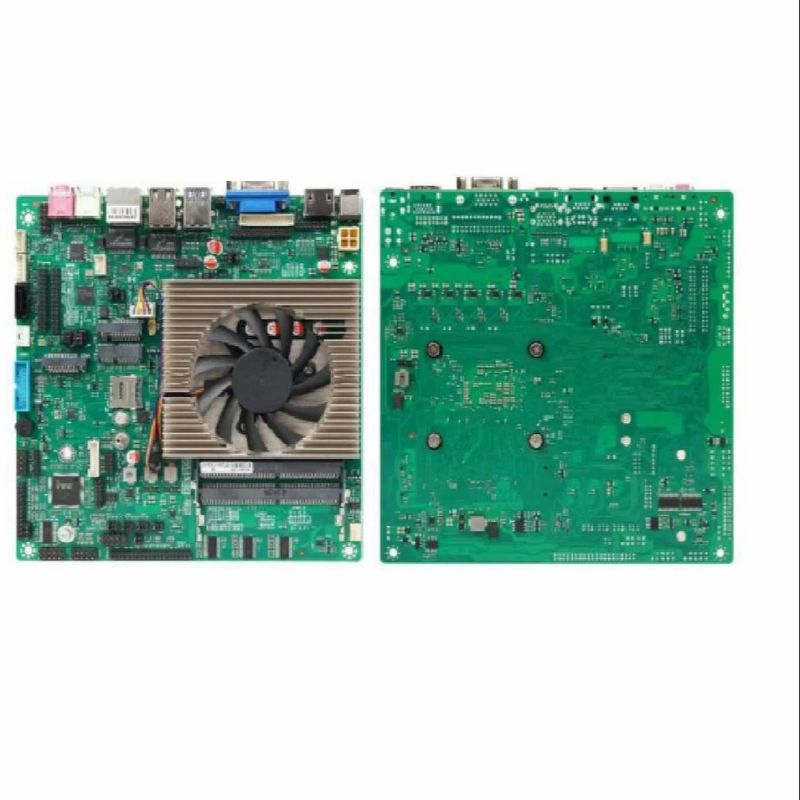

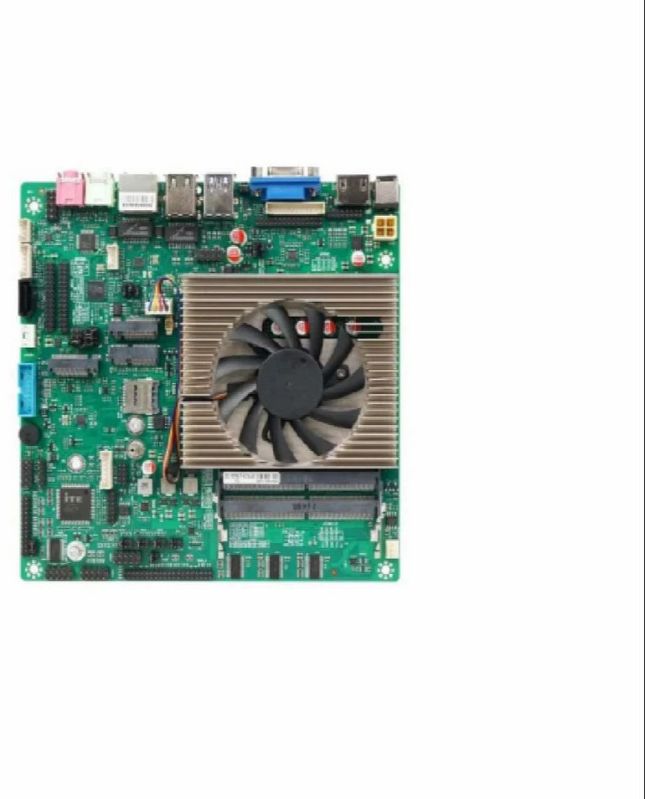

Looking for "STS 12th Gen Industrial Grade Embedded Control Motherboard" ?
Piece
